CAST STEEL GATE VALVES

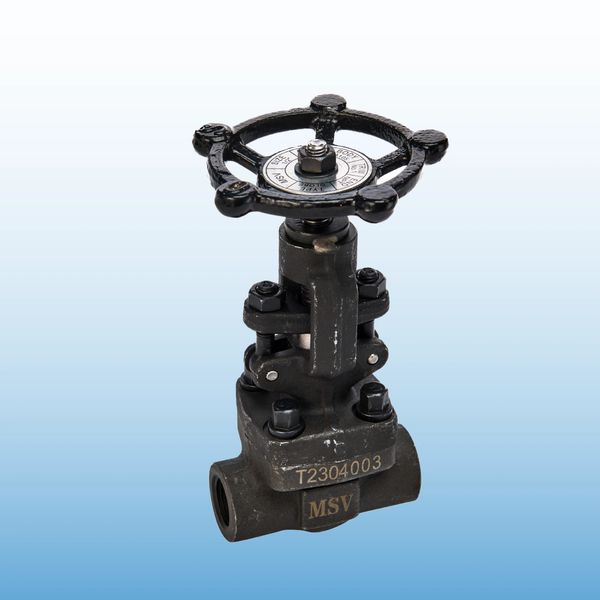

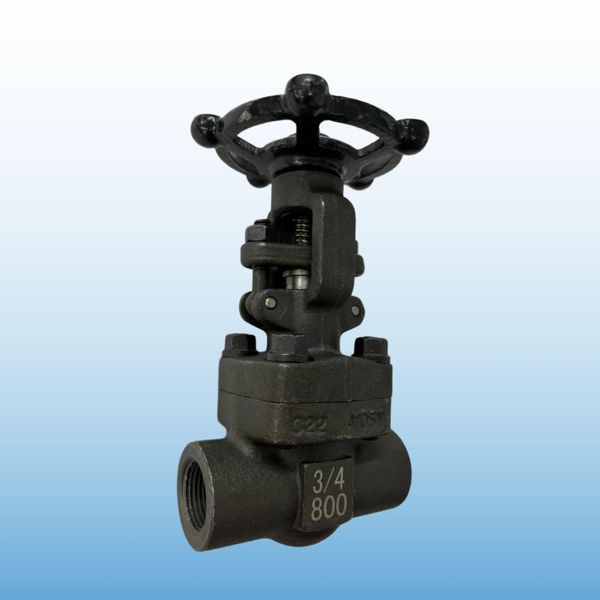

MSV GATE VALVE, A105, BOLTED BONNET, HANDWHEEL OPERATED, SOCKET WELD / NPT THREADED

• Design and manufacture according to API 602
• Pressure Test according to API 598
• Available Class 800 and Class 1500
• Available Socket weld ANSI B16.11 & NPT ANSI B1.20.1
• Bolted Bonnet
• Bi-directional
• Ideal for On-off duties

Check Valves are Uni-directional valves which automatically open with forward flow and close against reverse flow.

They are supplied to meet a wide variety of applications with the closing element of the piston, ball or swing type

• Design and manufacture according to ANSI B16.34
• Pressure Test according to API 598
• Available Class 800 and Class 1500
• NPT ANSI B1.20.1
• Uni-directional

MSV GLOBE VALVE, A105, BOLTED BONNET, HANDWHEEL OPERATED, SOCKET WELD / NPT THREADED

• Design and manufacture according to API 602
• Pressure Test according to API 598
• Available Class 800 and Class 1500
• Available Socket weld ANSI B16.11 & NPT ANSI B1.20.1
• Bolted Bonnet
• Uni-directional
• Ideal for On-off duties

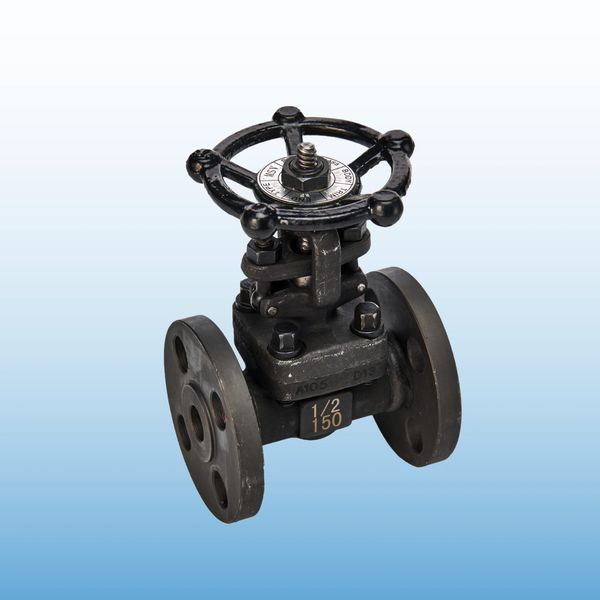

MSV A105 FORGED STEEL GATE VALVES FLANGED ASA150 / ASA300 / ASA600

• Gate valves are Bi-directional valves ideally suited for on-off duties.
• Pressure ratings:  Class 150 / Class 300 / Class 600
• ASTM A105 Body for General Service:  Oil, Oil Vapor, Gas, Steam and Water
• Trim:  Trim 1 – 13% Cr, Type 410 Stainless steel:  For Oil and Oil Vapor and general services with heat threaded seats and wedges
• Design and manufacture According to API 602
• Face to face dimension According to ANSI B16.10
• Flange End dimensions According to ANSI B16.5
• Pressure Test According to API STD. 598
