clayton control valves

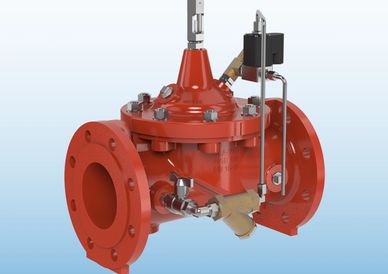

SOLENOID VALVE 136-01 / 636-01

PRESSURE RELIEF / PRESSURE SUSTAINING 650-01 / 50-01

PRESSURE RELIEF / PRESSURE SUSTAINING 650-01 / 50-01

DESCRIPTION

CLA-VAL Model 136-01/636-01 On/Off Electrical Remote Control Valve.

Body & Cover - Ductile Iron, Trim - Stainless Steel.

Fusion Bonded Epoxy Coated With Red Braun

End Connection - Flanged & Drilled SABS 1123 Table 1600

Auxiliary Pipework with Copper Tubing & Brass Fittings.

Including Solenoid (Voltage to be advised)


FEATURES

  • ON / OFF Control
  • Can also be used as a Level Control valve by using a float switch
  • Complete Automatic Operated

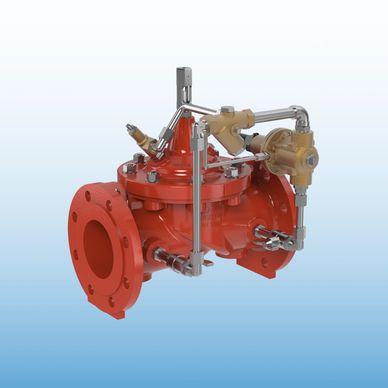

PRESSURE RELIEF / PRESSURE SUSTAINING 650-01 / 50-01

PRESSURE RELIEF / PRESSURE SUSTAINING 650-01 / 50-01

PRESSURE RELIEF / PRESSURE SUSTAINING 650-01 / 50-01

DESCRIPTION

CLA-VAL Series 50/650 Pressure Sustaining / Relief valve, Body & Cover – Ductile Iron.  Trim – Stainless steel, Fusion bonded  Epoxy coated with Red Braun, Flanged and Drilled SABS 1123 Table 1600/3.  Including Auxiliary Pipework with Copper Tubing & Brass Fittings, Including CRL Pressure Relief Pilot & Pressure Gauge.

Adjustable Set Range Between 0 – 5 Bar or 1.3 – 13 Bar or 6.8 – 16 Bar.


FEATURES

  • Automatic Operation
  • Accurate Pressure Control
  • Fast opening / Slow Closing
  • Available in Full port and Reduced port

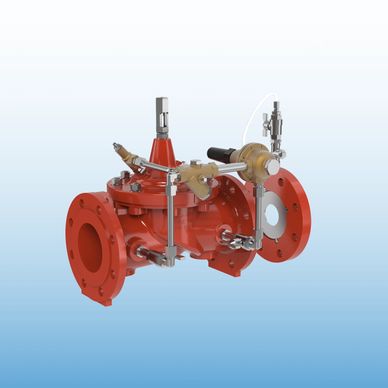

PRESSURE REDUCING 690-01 / 90-01

PRESSURE RELIEF / PRESSURE SUSTAINING 650-01 / 50-01

ON-OFF LEVEL CONTROL VALVE 124-01 / 624-01

DESCRIPTION

CLA-VAL Series 90/690 Pressure Reducing valve, Body & Cover – Ductile Iron, Trim – Stainless steel, Fusion bonded epoxy coated with Red Braun, Flanged and Drilled SABS 1123 Table 1600/3.  Including Auxiliary Pipework with Copper tubing and Brass Fittings.  Including CRD Pressure Reducing Pilot & Pressure Gauge.

Adjustable Down stream Set Range Between 0.1 – 2 Bar or 1.0 – 5.0 Bar or 2.1 – 21 Bar.


FEATURES

  • Automatic Operation
  • Easy Adjustment and Maintenance
  • Sensitive & Accurate Pressure control

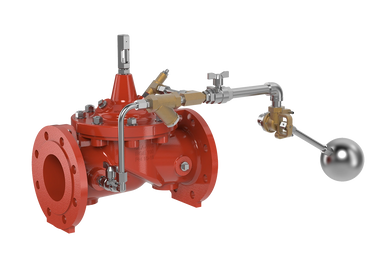

ON-OFF LEVEL CONTROL VALVE 124-01 / 624-01

ON-OFF LEVEL CONTROL VALVE 124-01 / 624-01

ON-OFF LEVEL CONTROL VALVE 124-01 / 624-01

DESCRIPTION

CLA-VAL Series 124/624 Level Control (Bi-level) valve, Body & Cover – Ductile Iron, Trim – Stainless steel, Fusion Bonded Epoxy coated with Red Braun, Flanged & Drilled SABS 1123 Table 1600/3.  Including Auxiliary Pipework with Copper Tubing and Brass fittings complete with CF1-C1 On/Off Float control pilot.


FEATURES

  • Accurate and repeatable level control
  • On/Off non modulating action
  • Fully Adjustable high and low level settings

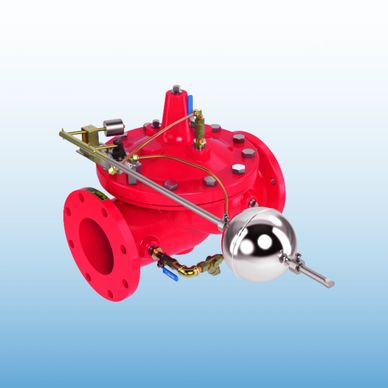

MODULATING LEVEL CONTROL VALVE 129/629

ON-OFF LEVEL CONTROL VALVE 124-01 / 624-01

MODULATING LEVEL CONTROL VALVE 129/629

DESCRIPTION

CLA-VAL  Model 129-01/629-01 Modulating Control Valve, Body & Cover - Ductile Iron,

Trim - Stainless Steel, Fusion Bonded Epoxy Coated With Red Braun

End Connection Flanged SABS 1123 T1600

Complete With CFM2-120 Pilot

Auxiliary Pipework with Copper Tubing & Brass Fittings.

Complete with X47A Ejector


FEATURES

  • Self Stabilising Modulating Float Level Control valve
  • Maintains a constant Liquid Level
  • Reliable Hydraulic Operation
  • Complete Automatic Operated

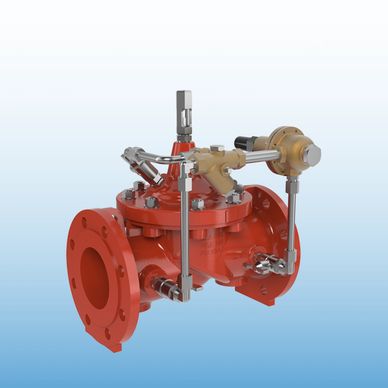

FLOW CONTROL 640-01/40-01

ON-OFF LEVEL CONTROL VALVE 124-01 / 624-01

MODULATING LEVEL CONTROL VALVE 129/629

DESCRIPTION

CLA-VAL Model 40-01/640-01 Rate of Flow Control Valve, Body & Cover - Ductile Iron,

Trim - Stainless Steel, Fusion Bonded Epoxy Coated With Red Braun

Flanged & Drilled SABS 1123 Table 1600

Including Auxiliary Pipework with Copper Tubing & Brass Fittings.

C/W X52A Orifice Plate Assembly.  Flow Set Range To Be Confirmed.

CDHS-18 Differential Control Pilot

FEATURES

  • Typically Installed where water supply to a system must be limited to a maximum flow rate
  • Complete Automatic Operated
  • Easy Adjustment & Maintenance


CLAYTON CONTROL VALVES DATA SHEETS

datasheet 40-01 (pdf)

Download

129001DE (1) (pdf)

Download

124 and 624 ON OFF FLOAT LEVEL CONTROL VALVE (pdf)

Download

90-01 and 690-01 data sheet (pdf)

Download

50-01 and 650-01 Data Sheet (pdf)

Download

136001DE ON OFF ELECTRICAL REMOTE CONTROL VALVE (pdf)

Download
