TAYLORSHAW VALVES

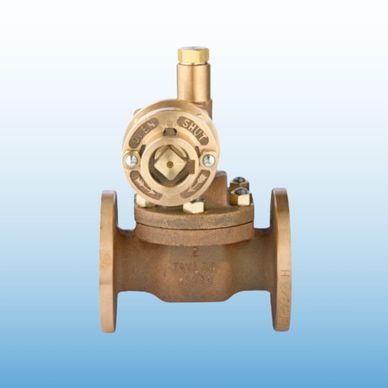

Bronze Parallel Slide Blowdown Valve, Class 250
Body and Bonnet:  Bronze, Trim:  Nickel Alloy, Ends Flanged Flat Face.
To suit 40 Bar @ 120 Deg. C or 17.5 Bar @ 260 Deg. C.
Size:  15mm to 40mm

Note:  Keys supplied on as an extra request

• Cast Bronze body and Bonnet, rack and pinion, Box key operated
• Key can be supplied as an extra if required
• Flanged to ANSI.BS. or European Standards

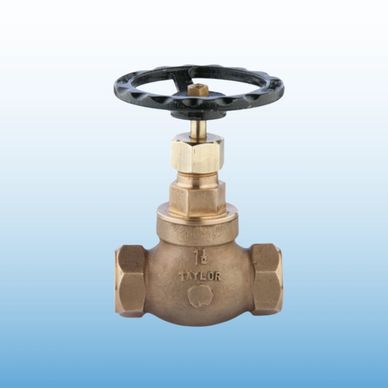

Bronze Globe Stop Valve Internal Screw, Class 250
Body and Bonnet:  Bronze, Nickel Alloy Seat and Valvehead, Bronze Gland, Cast Iron Inside Screw rising Stem and handwheel, Ends Screwed BSP.
To Suit 40 Bar @ 120 Deg C OR 17.5 Bar @ 260 Deg C
Sizes:  15mm to 50mm

• Ends Screwed BSP

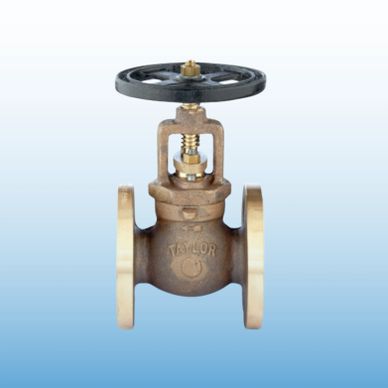

Bronze Globe Stop Valve External Screw, Class 250
Body and Bonnet:  Bronze, Nickel Alloy Seat and Valvehead, Bronze Gland, outside Screw Rising Stem and Cast Iron Handwheel, ends flanged.
To Suit 40 Bar @ 120 Deg C OR 17.5 Bar @ 260 Deg C.
Sizes:  15mm to 80mm

• Flanged to ANSI, BS. or European Standards

Bronze Globe, Stop and Non-Return Valve, External Screw
Body and Bonnet:  Bronze, Nickel Alloy Seat and Valvehead, Bronze Gland, Outside Screw Rising Stem, Cast Iron Handwheel, Flanged Ends
To Suit 40 Bar @ 120 Deg C OR 25.5 Bar @ 220 Deg C
Sizes:  15mm to 80mm

• Flanged to ANSI, BS. or European Standards
• Valve should be installed So Valve Head lifts Vertically upwards

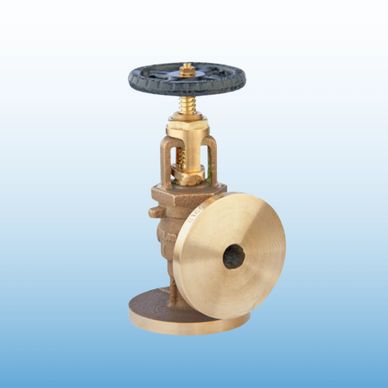

Bronze Angle Stop Valve External Screw, Class 250
Body and Bonnet:  Bronze, Nickel Alloy Seat and Valvehead, Bronze Gland, Outside Screw Rising Stem, Cast Iron Handwheel, Flanged Ends
To Suit 40 Bar @ 120 Deg C OR 17.5 Bar @ 260 Deg C
Sizes:  15mm to 80mm

• Flanged to ANSI, BS. or European Standards

Cast Steel Double Spring High Lift Safety Valve
Cast Steel Body, Nickel Alloy Seats, Stainless steel Valve Head, Bronze Valve Head holders, Alloy Steel Springs, Flanged Ends
Suitable for pressures up to 24 Bar and Temperatures up to 345 Deg C

• Flanges to ANSI, BS. or European Standards
• Consult us for acurate Sizing
• Valve approved by Lloyds for Boiler Installations

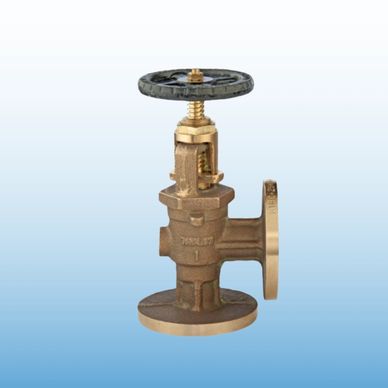

Bronze Angle Stop and Non Return Valve, External Screw
Body and Bonnet:  Bronze, Nickel Alloy Seat and Valvehead, Bronze Gland, Outside Screw Rising Stem, Cast Iron Handwheel.
To Suit 40 Bar @ 120 Deg C OR 25.5 Bar @ 220 Deg C
Sizes:  15mm to 80mm

• Flanged to ANSI, BS. or European Standards.
• Valve should be installed so Valve Head Lifts vertically upward

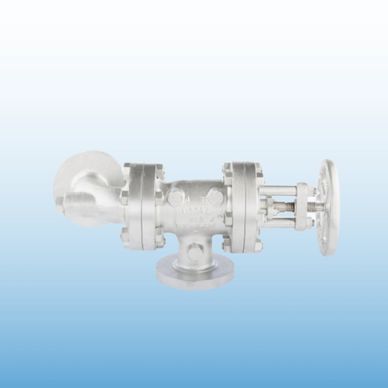

Cast Steel Check Feed Valve, Elbow Inlet
Body, Bonnet and Inlet:  Cast Steel, Nickel Alloy Seats and Stop Valve Head, Bronze Check Valve Head with P.T.F.E Ó Ring. Stainless steel stem.
Pressure 26 Bar for WAter up to saturation temperature.
Sizes:  40mm to 80mm

•  Outlet Right Hand or Left Hand to Customer’s Order.
• Flanged to ANSI, BS. or European Standards
• Valve should be installed so Valve Head Lifgts Vertically upward

Bronze Sleeve Packed Water Gauge.
Cast Bronze Body and Trycock, Manganese Bronze, Fittings and PTFE Packing sleeves.

• Flanged to ANSI, BS. Or European Standards
• Automatic Shut off in both Top and Bottom Arms should Gauge Glass Break
• When ordering please state:
• 1. Size of Gauge glass required i.e 1/2″ or 3/4
• 2. Distance between centres of top and bottom arms
• 3. Whether Left or Right Hand Gauge required
• 4. Whether Protector required. Fig 514
• 5. Whether Reflex required. Fig 614
